Adjustable Angle Hinge Connector

The Adjustable Angle Connector is one of the most versatile structural pipe fittings in the Maker Pipe building system. You can choose from two available sizes that are designed to natively fit either 3/4" or 1" EMT Conduit respectively. EMT Conduit is readily available at your local hardware store. The 1/2" connector variant includes the needed adapter shims for building with 1/2" EMT Conduit.The Adjustable Angle Connector gives you the ability to achieve any angle up to 90 degrees in either direction. Use the provided hardware to secure two pipes at a desired angle or partially tighten the top bolt and nut to create a hinge.

*Hardware is included with each Adjustable Angle Hinge Connector

Color
Silver
EMT Conduit Size
Connector

Adjustable Angle Connector Overview



Features

  • STEEL CONSTRUCTION
  • CORROSION RESISTANT E-COATING
  • PRE-APPLIED FRICTION BAND
  • POCKET FEATURE
  • INTERLOCKING PUZZLE PIECE



Description

The Adjustable Angle Connector consists of four pieces. The two long pieces secure a terminating pipe and create the end clamp. The two smaller pieces have interlocking puzzle pieces that secure a through pipe and create the puzzle piece clamp. You can buy all four pieces together or buy the bottom/top half separately if you need one and not the other.



Adjustable Angle Connector Dimensions



Made in Ameria



10 Building Tips & Tricks


See The Adjustable Angle In Action

Want to see more Maker Pipe videos?

Watch More




See It In Action




Customer Reviews

Based on 81 reviews
93%
(75)
5%
(4)
0%
(0)
1%
(1)
1%
(1)
I
Izifaddag (ID)
NOT BAD NOT GOOD

I just ordered 2 end clamps. I must admit they did clamp on quite well. Although I can see that somewhere down the line I am going to have to drill holes and put at least 1 self tapper in to stop it sliding off. I was expecting the piece to fully enclose the 3/4 pipe. It didn't. There is a gap.
It does what I want it to do but none of the stuff I ordered is plug and play. Everything needs to be pinned by drilling and using self tappers or nuts and bolts. The whole friction idea is a bust. For a few things it might work but overall figure on drilling and adding additional fasteners.

E
Erich (IL)
maker pipe product

Great product to work with. Great service fast shipment and commucation.

S
Steve K. (WA)
Great parts

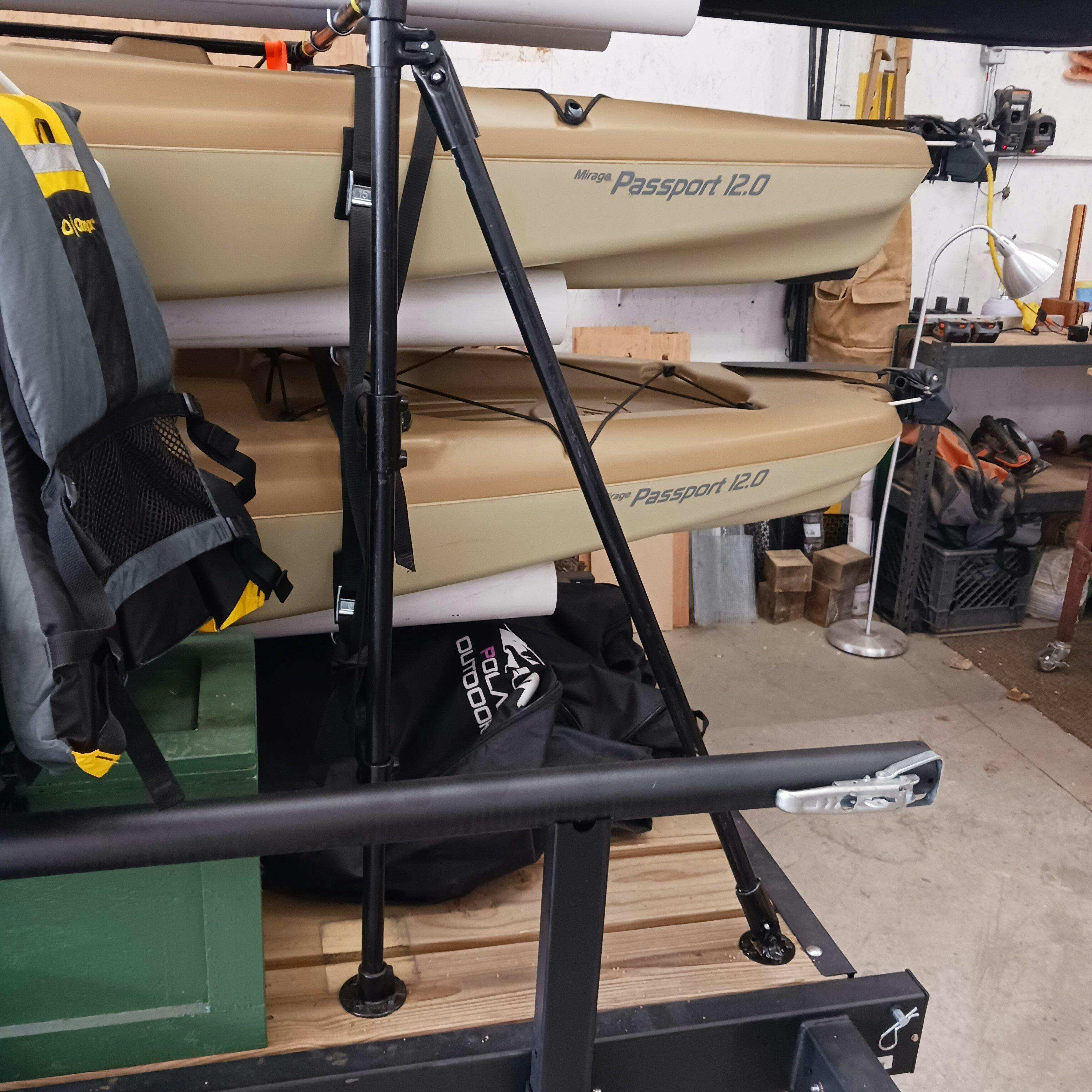

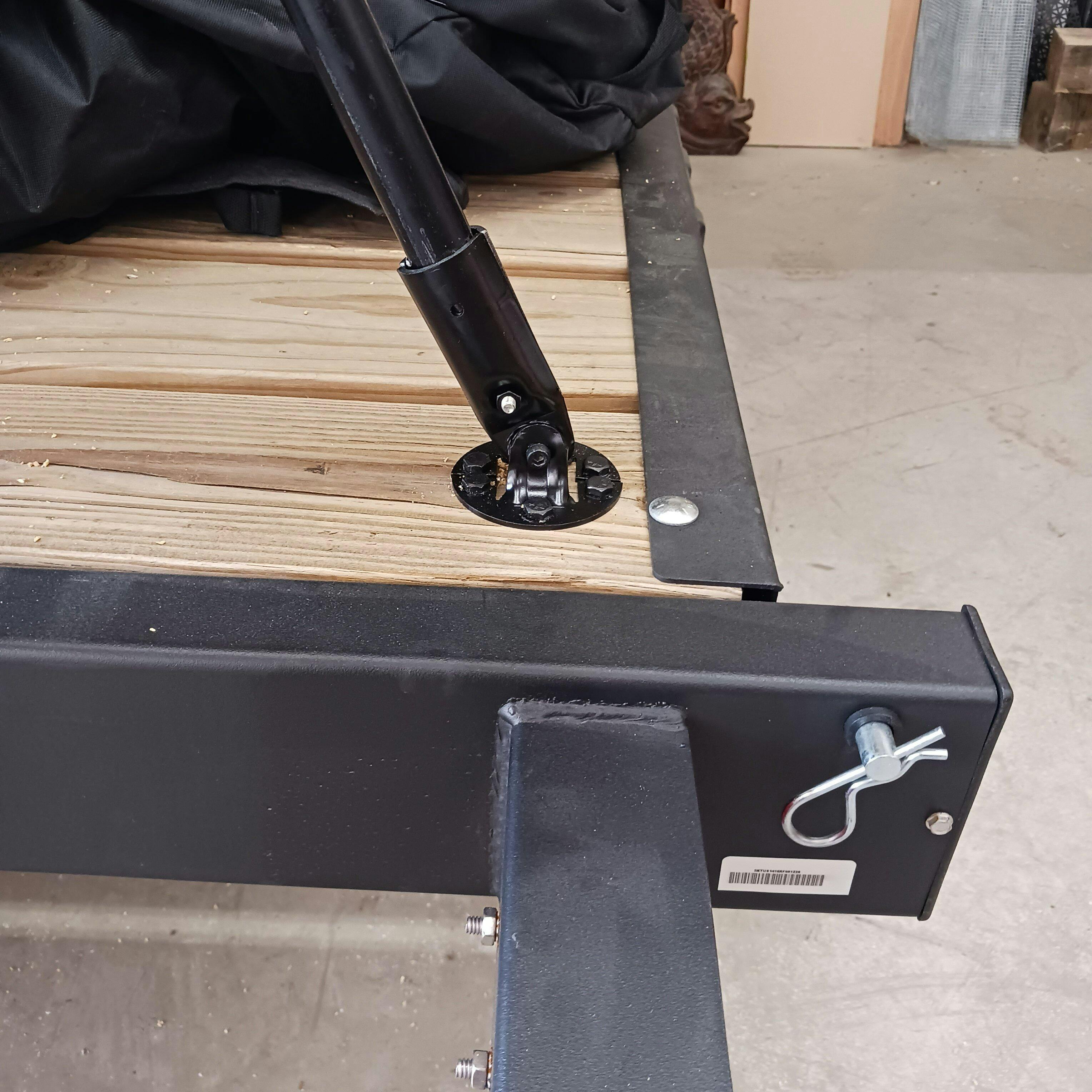

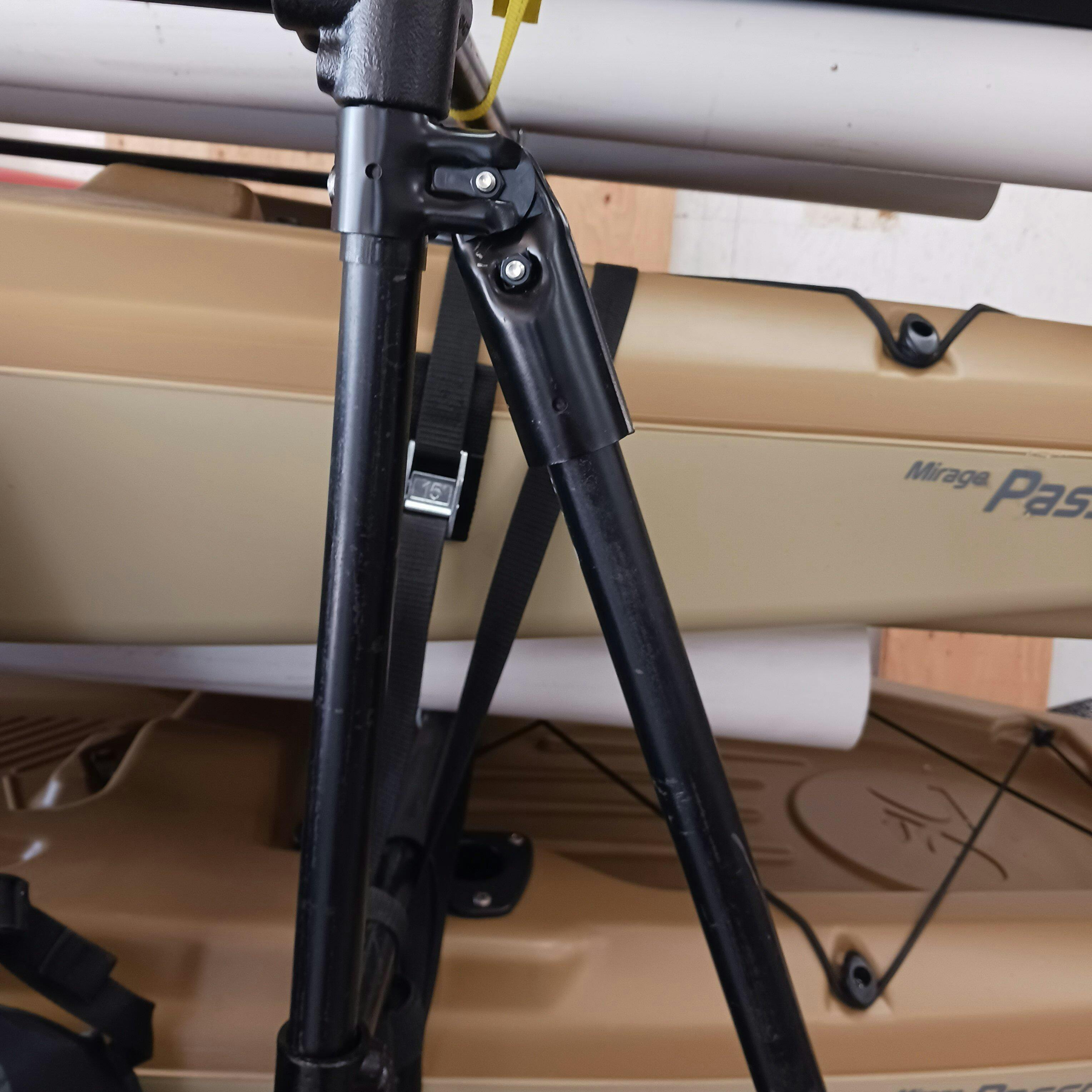

I bought maker pipe parts to help stabilize my kayak rack on a trailer. They are working great. I did paint them black to match the existing frame. I would definitely recommend maker pipe.

R
Russ M. (MO)
Very useful product

arrived on time, was exactly what I needed
